Optional Equipment and Accessories

All overhead cranes can be easily upgraded at a
later date by adding optional equipment such as:

• Bridge & trolley travel limit switches
• Anti-collision devices
• Service platforms
• Walkways
• Load sensing/weighing & monitoring systems
• Audio or light warning systems
• Flood lights
• Variable Frequency Drive (VFD),
    for stepless speed control
• Radio remote controls
• Magnet or vacuum lifting equipment
• Overload protection
• Safety equipment and more.
Arro Jib Crane

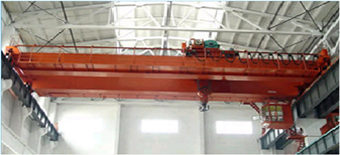

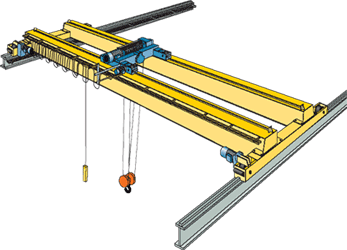

Double Grinder Overhead Crane
Arro Jib Crane
Double Grinder Overhead Crane
Grantry Crane
JiB Crane
Grantry Crane
JIB Crane
Grab Bucket
4m3 Grab Bucket
Grab Bucket
4m3 Grab Bucket

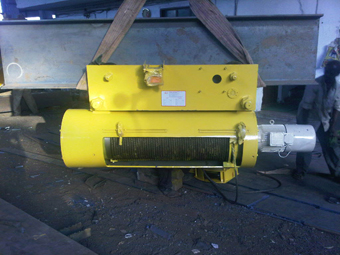

10 T 32 Mtrs Height Of Lift Eot Hoist
5 Tons EOT Eelectric Hoist with Conical Design
10 T 32 Mtrs Height Of Lift Eot Hoist
5 Tons EOT Eelectric Hoist with Conical Design
5 Tons Eot Goliath Crane For Scale Pit Applications
5 Tons Convensional Type EOT Hoist
5 Tons Eot Goliath Crane For Scale Pit Applications
5 Tons Convensional Type EOT Hoist
10 Ton Hoist

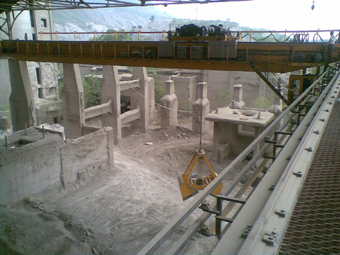

32 Mtrs Span Grabing Crane For Cement Plant
10 Ton Hoist
32 Mtrs Span Grabing Crane For Cement Plant
Bottom Blocks
Grabing Crane
Bottom Blocks
Grabing Crane
Steel Plant Application
30 Tons C Hook
Steel Plant Application
30 Tons C Hook
Self Supported 5 Tons Jib Crane

Self Supported 5 Tons Jib Crane



BRAKE ACTUATION ARRANGEMENT
MOTOR :
The motor is three phase squirrel cage, conical rotor type working on 440 volts, 3P,50 Hz A.C. supply. This motor is specially designed for hoist and crane and is insulated by class 'F' type of insulation according to B.S : 2613. The starting and stalling torques of this motor are 220 % and 290 % of the full load torque. The motor is rated at 40 % CDF.

BRAKE :
The axial movement of the rotor is one of the characteristics of the conical rotor type of motor. This characteristic is taken advantage of in the actuation of the brake. When the motor is started the rotor is axially pulled into the magnetic centre of the stator and the brake is released. As soon as the current is cut off the brake spring presses the brake disc against the cover and the brake is applied. The braking torque is 100 % above the motor torque at the rated load.
The maintenance and adjustment of the brake is very simple and can be done without removing any part. The brake disc and brake end cover are both made of high grade cast iron and the brake lining is of 'Ferrodo' type.


GEAR BOX :
The gear box is made of high grade cast iron. The precision spur gears are machined from alloy steel and are fitted with ball / needle roller bearings. The gear box is filled with grease.

ROPE DRUM :
The rope drum is rolled welded and precision machined. This rope drum is supported on large diameter roller bearings on both ends and the drive is through internal gears.
This rope guide moves on the drum like a nut and prevents the rope from overriding and loosening.


ROPE :
Generally 6 x 37 / 6 x 36 construction fibre core preformed type, ungalvanised wire rope is supplied. (Galvanised and steel core wire ropes can also be supplied, if specifically asked for).

MAIN HOUSING :
All hoist parts are enclosed in the main housing thus forming a better looking integral unit. The main housing like the rope drum is also of rolled and welded construction, equipped with mounting bracket.

LIMIT SWITCHES :
Every hoist is provided with built in limit switches to control the top and bottom positions of the hook. Tappets can be adjusted on limit switch rod to any position in between the range provided. These limit switches are actuated by the rope guide.

CONTROL : The hoist is controlled by a pendant push button station. Supply to the pendant push button station i I s of 110 volts as per IS specifications.

MICROSPEED :
All hoists can be fitted with a micro speed attachment which reduces the hoisting speed to 1/10th of the main hoisting speed. The micro speed attachment works independent of the load and main hoist. There is a separate control for the micro speed. This arrangement is invaluable in the handling of bulky, heavy and delicate loads.

TESTING :
Every hoist unit is tested at 125 % of the rated load capacity on single fall of rope. Even the components pass through rigorous inspection tests before the hoist is approved for dispatch.

EXTENDED TROLLEY
These are particularly required when the load is bulky or far handling material form furnaces / chemical baths. This trolley can also be provided with two hooks to deal with loads like paper rolls, logs etc. When the loads go beyond the overhead track, an outrigger type of extended trolley is indispensable These are used for loading on and unloading from ships in stream. Driver's cabins can also be built with trolley.

CRAB
Crabs can be supplied as standard units can be custom made. They offer maximum advantage when working in open. These crabs can have single or twin hoists units as required. The driving arrangement can either be with hand geared or motor driven type. Micro speed arrangement in hoisting can be provided if required.

TWIN HOISTS ON MONORAIL TROLLEY
For exceptionally high height of lifts this arrangement is very useful. It also offers the option of two hoisting speeds. The maximum height is
73 m for a load of 5 tonnes. for 228 type twin hoists


MICRO SPEED ATTACHMENT
For exceptionally high height of lifts this arrangement is very useful. It also offers the option of two hoisting speeds. The maximum height is 73 m for a load of 5 tones. for 228 type twin hoists

FIXED MOUNTED HOIST
These are available in all types of mountings, eg. floor mounted, ceiling mounted, wall mounted etc. They are used for loading and unloading transportation vehicles, through floor hatches or outside the wall, and for serving production machinery. When ordering, please state in what position the hoist is to be mounted and wire outlet (WO) required.

HOIST WITH TROLLEY
Hoists can be equipped with trolley for horizontal traveling, The trolley is fabricated from components bolted and welded together and carried by traveling wheels supported on all bearings
Smaller loads can be moved with a push type trolley whilst the hand chain or motor driven should be used for heavier loads. The motor driven trolley would be the best solution if the hoists unit is required to move loads rapidly. The driver motor is of squirrel cage type with built in brake. The motor drives one or more of the trolley's wheel's gear rim. Wherever there are limitations to the variable head room, short head room trolley can be supplied

HOIST WITH FLEXIBLE TROLLEY
When the trolley has to negotiate a curved track or the material movement is from one bay to another, this type of arrangement fulfills the requirement. The minimum radius of curvature the flexible trolley can negotiate is 1.5 meters.
